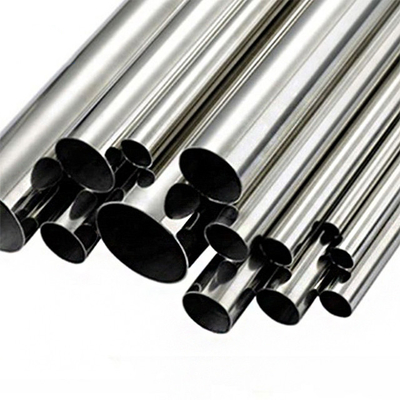

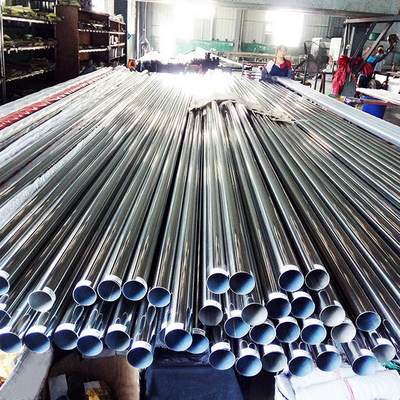

316L Stainless Steel Seamless Tube ASTM A312 TP 316L Seamless 316l Stainless Steel Tube TP316L Stainless Steel Seamless
| Place of Origin | China |
|---|---|
| Brand Name | Hongye |
| Certification | ISO |
| Model Number | 316L |
| Minimum Order Quantity | 25tons.We also can accept sample order. |
| Packaging Details | Export Packing |
| Delivery Time | Within 15-20 workdays after receiving deposit or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 250,000 tons/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 316L | Material | Stainless Steel |
|---|---|---|---|
| Width | Customized | Origin | Wuxi |
| Grade | 300 Series | Brand | Hongye |
| Transport Package | Export Packing |
Product Description
316L Stainless Steel Seamless Tube ASTM A312 TP 316L Seamless 316l Stainless Steel Tube TP316L Stainless Steel Seamless
Company Profile
Hongye stands out with its unique capabilities! As a leading global metal distribution company, we provide tailored product solutions to meet our clients' needs, helping them gain a competitive edge.
Founded in 2009 and headquartered in Wuxi, China, Hongye has made significant achievements in the aerospace, defense, transportation, shipbuilding, semiconductor, energy, and construction sectors over the past five years.
We offer solutions in sheets, pipes, profiles, building materials, specialty steels, stainless steels, and non-ferrous metals. Additionally, our involvement in finance and port operations strengthens our position in the metal import and export market.
With our integrated “one-stop” services that include procurement, processing, retail, and logistics, Hongye has become an industry benchmark. We excel in delivering high-quality, cost-effective products, supported by robust supply chain management to meet customer needs continuously.
Internationally, Hongye has established a solid business network in Europe, Southeast Asia, and the Middle East. Our multilingual and culturally adept trade team ensures efficient and professional service for every transaction.
Since 2010, Hongye has made notable progress in sustainability, recognized by multiple institutions. By the end of 2012, we had invested 1.22 billion RMB (200 million USD) in China's metal distribution industry, becoming a significant local investor. We aim to expand our market share through collaboration and innovation.
Looking ahead, Hongye will continue to globalize, leveraging our experience and resources to grow our international market share and aspire to be a leader in the global metal distribution industry.
Our goal is to rank among the top 10 in comprehensive strength in China's metal distribution market.
Product Specification
Material Grade:
202 Stainless Steel
Dimensional Specifications:
Plates:
Thickness: 3.0 mm to 50.0 mm
Width: 1,000 mm to 2,000 mm
Length: 2,000 mm to 12,000 mm
Sheets:
Thickness: 1.0 mm to 6.0 mm
Width: 1,000 mm to 1,500 mm
Length: 2,000 mm to 6,000 mm
Mechanical Properties:
Minimum Yield Strength: 205 MPa
Minimum Tensile Strength: 515 MPa
Minimum Elongation: 40%
Chemical Composition (%):
Carbon (C): ≤ 0.15
Chromium (Cr): 17.0 - 19.0
Nickel (Ni): 4.0 - 6.0
Manganese (Mn): 7.5 - 10.0
Silicon (Si): ≤ 1.0
Sulfur (S): ≤ 0.03
Phosphorus (P): ≤ 0.060
Balance: Iron (Fe)
Surface Condition:
Hot-rolled, annealed, and pickled
Smooth surface finish
Tolerances:
Thickness Tolerance: ± 0.20 mm to ± 0.50 mm
Width Tolerance: ± 3.0 mm to ± 6.0 mm
Length Tolerance: ± 6.0 mm to ± 12.0 mm
Flatness: ≤ 3.0 mm/m
Certifications and Standards:
Manufactured to meet national and international standards (e.g., ASTM A240/A240M, EN 10088-2)
Approved for architectural, industrial, and general engineering applications
Packaging and Shipping:
Plates and sheets are stacked and secured on wooden pallets or in bundles
Suitable for domestic and international shipping
Equipped with edge and surface protection
Baosteel's hot-rolled 202 stainless steel plates and sheets offer the following key features and benefits:
Excellent corrosion resistance, especially in mildly corrosive environments
Good mechanical strength and formability for various fabrication processes
Consistent material properties and dimensional accuracy
Attractive appearance and easy maintenance
Compliance with industry standards and regulations
These 202 stainless steel products are widely used in a range of applications, including architecture, construction, food processing, automotive, and general industrial equipment. Their versatility, quality, and performance make them a reliable choice for many industries.
Product Description
Material Grade:
TP316L Stainless Steel (Low Carbon)
Dimensional Specifications:
Pipes:
Outside Diameter (OD): 12.7 mm (1/2 inch) to 406.4 mm (16 inch)
Wall Thickness: 1.2 mm to 19.1 mm
Standard Lengths: 6 meters (20 feet)
Tubes:
Outside Diameter (OD): 6.35 mm (1/4 inch) to 168.3 mm (6.625 inch)
Wall Thickness: 0.8 mm to 12.7 mm
Standard Lengths: 6 meters (20 feet)
Mechanical Properties:
Minimum Yield Strength: 205 MPa
Minimum Tensile Strength: 515 MPa
Minimum Elongation: 40%
Chemical Composition (%):
Carbon (C): ≤ 0.03
Chromium (Cr): 16.0 - 18.0
Nickel (Ni): 10.0 - 14.0
Molybdenum (Mo): 2.0 - 3.0
Manganese (Mn): ≤ 2.0
Silicon (Si): ≤ 0.75
Sulfur (S): ≤ 0.03
Phosphorus (P): ≤ 0.045
Balance: Iron (Fe)
Surface Condition:
Seamless, annealed, and pickled
Tolerances:
Outside Diameter Tolerance: ± 0.5% to ± 1.5%
Wall Thickness Tolerance: ± 10% to ± 12.5%
Straightness: ≤ 3 mm/m
Certifications and Standards:
Manufactured to meet national and international standards (e.g., ASTM A312/A312M, ASME SA-312/SA-213, EN 10216-5)
Approved for high-temperature, high-pressure, and corrosive applications
Packaging and Shipping:
Pipes and tubes are capped at both ends and secured on wooden pallets or in bundles
Suitable for domestic and international shipping
Baosteel's TP316L stainless steel seamless pipes and tubes offer excellent corrosion resistance, high-temperature strength, and superior formability, making them suitable for a wide range of applications, including:
Chemical and petrochemical processing
Oil and gas industry
Power generation and nuclear facilities
Pulp and paper mills
Pharmaceutical and food processing plants
Marine and offshore environments
General industrial and equipment fabrication
The consistent material properties, dimensional accuracy, and surface finish ensure efficient and reliable performance in demanding operating conditions, meeting the stringent requirements of various industries.
Product Characteristics
-
Material Grade:
- 316L Stainless Steel (Low Carbon)
-
Dimensional Specifications:
Plates:- Thickness: 3.0 mm to 50.0 mm
- Width: 1,000 mm to 2,000 mm
- Length: 2,000 mm to 12,000 mm
Sheets:
- Thickness: 1.0 mm to 6.0 mm
- Width: 1,000 mm to 1,500 mm
- Length: 2,000 mm to 6,000 mm
-
Mechanical Properties:
- Minimum Yield Strength: 170 MPa
- Minimum Tensile Strength: 485 MPa
- Minimum Elongation: 45%
-
Chemical Composition (%):
- Carbon (C): ≤ 0.03
- Chromium (Cr): 16.0 - 18.0
- Nickel (Ni): 10.0 - 14.0
- Molybdenum (Mo): 2.0 - 3.0
- Manganese (Mn): ≤ 2.0
- Silicon (Si): ≤ 0.75
- Sulfur (S): ≤ 0.03
- Phosphorus (P): ≤ 0.045
- Balance: Iron (Fe)
The combination of superior corrosion resistance, mechanical properties, and versatility makes these 316L stainless steel products a reliable choice for demanding applications where high performance and durability are essential.
Baosteel's hot-rolled 316L stainless steel plates and sheets are widely used in a variety of industries, including:
Application of the product
-
Chemical and Petrochemical Industry:
- Pressure vessels, reactors, and storage tanks
- Piping, valves, and fittings for corrosive environments
- Equipment and components for chemical processing plants
-
Food and Beverage Processing:
- Food processing equipment, such as food preparation surfaces, conveyors, and storage tanks
- Pharmaceutical and biotechnology equipment
- Dairy, brewery, and winery equipment
-
Marine and Offshore Applications:
- Ship hulls, decks, and superstructures
- Offshore oil and gas platforms
- Desalination plants and seawater intake systems
-
Power Generation:
- Components for nuclear power plants, including containment structures and coolant systems
- Parts for fossil fuel power plants, such as boilers, turbines, and heat exchangers
-
Architectural and Interior Design:
- Facade cladding and roofing materials
- Architectural features, such as handrails, staircases, and elevator enclosures
- Interior design elements, including kitchen appliances, sinks, and furniture
-
Automotive and Transportation:
- Exhaust systems, catalytic converters, and other automotive components
- Rail cars, subway cars, and other transportation vehicles
- Truck and trailer bodies and components
-
General Industrial Equipment:
- Machinery, instruments, and laboratory equipment
- Fasteners, springs, and other hardware
- Housings, enclosures, and structural components
The key advantages that make 316L stainless steel an excellent choice for these applications include:
- Exceptional corrosion resistance, even in harsh, chloride-rich environments
- High-temperature strength and oxidation resistance
- Excellent weldability and formability for a wide range of fabrication processes
- Smooth, non-porous surface that is easy to clean and maintain
- Durable and long-lasting performance with minimal maintenance
- Compliance with industry standards and regulatory requirements
FAQ
Q1: Are you trading company or manufacturer?
A: We are the manufacturer with 3 factories. Specializing in producing welded Wear plate, carbon steel profile, Carbon Products bollard for over 10 years.
Q2:What product information must I provide before making a purchase?
A:Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
A:Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
Q3:What are your payment terms?
A: 30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
A: 30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:Is it possible to send samples?
A: Of course, we offer free samples and express shipping to customers all over the world.
A: Of course, we offer free samples and express shipping to customers all over the world.
Q5:Do you offer a service for customized products?
A: Yes, we can produce according to your specifications and drawings.
A: Yes, we can produce according to your specifications and drawings.
Q6:Can you assist me in importing steel products for the first time?
A: Yes, we have shipping agent who will arrange the shipment with you.
Q7. What is your delivery time?
A: Within 7 working days after receiving your balance payment.
A: Yes, we have shipping agent who will arrange the shipment with you.
Q7. What is your delivery time?
A: Within 7 working days after receiving your balance payment.
