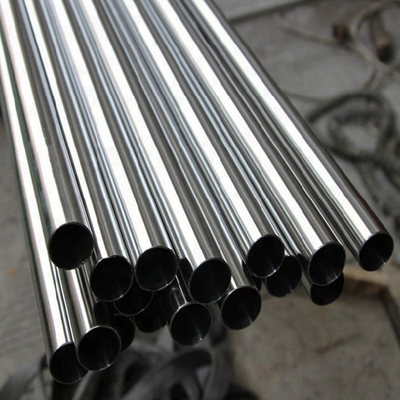

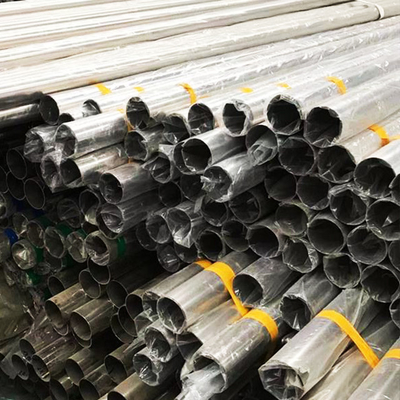

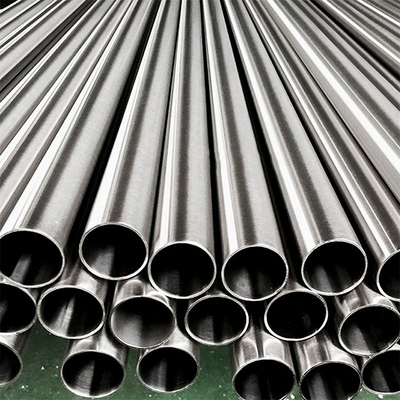

welding 2205 duplex stainless steel, duplex stainless steel tube Bright Seamless Welded S32750 1.4507 Duplex Steel Pipe
| Place of Origin | China |
|---|---|
| Brand Name | Hongye |
| Certification | ISO |
| Model Number | welding 2205 |
| Minimum Order Quantity | 25tons.We also can accept sample order. |
| Packaging Details | Export Packing |
| Delivery Time | Within 15-20 workdays after receiving deposit or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 250,000 tons/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Welding 2205 | Width | Customized |
|---|---|---|---|
| Origin | Wuxi | Color | Silver |
| Certification | ROHS.ISO9001.ASTM, JIS. GB. ENASTMB | Brand | Hongye |
| Technique | Extruded | Customization | Available |Customized Request |
Product Description
Company Profile
Hongye stands out with its unique capabilities! As a leading global metal distribution company, we provide tailored product solutions to meet our clients' needs, helping them gain a competitive edge.
Founded in 2009 and headquartered in Wuxi, China, Hongye has made significant achievements in the aerospace, defense, transportation, shipbuilding, semiconductor, energy, and construction sectors over the past five years.
We offer solutions in sheets, pipes, profiles, building materials, specialty steels, stainless steels, and non-ferrous metals. Additionally, our involvement in finance and port operations strengthens our position in the metal import and export market.
With our integrated “one-stop” services that include procurement, processing, retail, and logistics, Hongye has become an industry benchmark. We excel in delivering high-quality, cost-effective products, supported by robust supply chain management to meet customer needs continuously.
Internationally, Hongye has established a solid business network in Europe, Southeast Asia, and the Middle East. Our multilingual and culturally adept trade team ensures efficient and professional service for every transaction.
Since 2010, Hongye has made notable progress in sustainability, recognized by multiple institutions. By the end of 2012, we had invested 1.22 billion RMB (200 million USD) in China's metal distribution industry, becoming a significant local investor. We aim to expand our market share through collaboration and innovation.
Looking ahead, Hongye will continue to globalize, leveraging our experience and resources to grow our international market share and aspire to be a leader in the global metal distribution industry.
Our goal is to rank among the top 10 in comprehensive strength in China's metal distribution market.
Product Specification
Chemical Composition (wt.%):
- Chromium: 21.0 - 23.0%
- Nickel: 4.5 - 6.5%
- Molybdenum: 2.5 - 3.5%
- Nitrogen: 0.14 - 0.20%
- Carbon: ≤ 0.030%
- Silicon: ≤ 1.0%
- Manganese: ≤ 2.0%
- Copper: ≤ 1.0%
- Sulfur: ≤ 0.020%
- Phosphorus: ≤ 0.035%
- Iron: Balance
Mechanical Properties:
- Tensile Strength: 620 - 860 MPa
- Yield Strength: 450 - 650 MPa
- Elongation: 25 - 35%
- Hardness: 270 - 320 HV
Physical Properties:
- Density: 7.8 g/cm³
- Melting Range: 1400 - 1455°C
- Thermal Expansion Coefficient: 13-15 x 10-6 /°C (20-100°C)
- Thermal Conductivity: 15 W/m·K
- Electrical Resistivity: 0.8 - 0.9 μΩ·m
Corrosion Resistance:
- Pitting Resistance Equivalent Number (PREN): ≥ 35
Standards and Designations:
- UNS: S31803, S32205
- EN: 1.4462
- ASTM: A240, A789, A790
Common Product Forms:
- Plates, sheets, and coils
- Bars, rods, and wires
- Pipes, tubes, and fittings
- Castings and forgings
Product Description
Welding 2205 Duplex Stainless Steel:
-
Welding Processes:
- GTAW (TIG) and GMAW (MIG) are the most common welding processes used for 2205.
- SMAW (stick) and FCAW can also be used but require more careful parameter control.
-
Filler Metals:
- AWS A5.9 classification ERNiCrMo-3 (UNS W86112) is the most widely used filler metal.
- The composition should closely match the base metal to maintain the duplex microstructure.
-
Welding Parameters:
- Heat input should be carefully controlled between 0.5-2.5 kJ/mm.
- Inter-pass temperature should be limited to 150-200°C to avoid precipitating detrimental phases.
- Shielding gas should be pure argon or argon with 2-3% nitrogen.
-
Post-Weld Heat Treatment:
- Solution annealing at 1020-1100°C followed by water quenching may be required to restore corrosion resistance and mechanical properties.
Welding Duplex Stainless Steel Tubes and Pipes:
-
Tube/Pipe Welding Processes:
- Common welding processes include GTAW (TIG), GMAW (MIG), and FCAW.
- Automatic orbital welding is often used for consistent, high-quality welds on tubes/pipes.
-
Welding Parameters:
- Similar heat input and inter-pass temperature control as for 2205 plate welding.
- Shielding gas should be pure argon or argon with 2-3% nitrogen.
-
Filler Metals:
- ERNiCrMo-3 (UNS W86112) is a common choice, but other matching or slightly overmatching filler metals can also be used.
-
Post-Weld Heat Treatment:
- Solution annealing at 1020-1100°C followed by water quenching is often required for tubes/pipes.
-
Quality Control:
- Careful NDT (non-destructive testing) such as radiography, ultrasound, or dye penetrant is essential to ensure weld quality.
Product Characteristics
Okay, let's discuss the key product characteristics of 2205 duplex stainless steel:
-
Composition:
- 2205 duplex stainless steel (UNS S31803/S32205, EN 1.4462) has a balanced composition of:
- Chromium: 21-23%
- Nickel: 4.5-6.5%
- Molybdenum: 2.5-3.5%
- Nitrogen: 0.14-0.20%
- The balanced austenite-ferrite microstructure gives 2205 its unique properties.
- 2205 duplex stainless steel (UNS S31803/S32205, EN 1.4462) has a balanced composition of:
-
Mechanical Properties:
- Tensile Strength: 620-860 MPa
- Yield Strength: 450-650 MPa
- Elongation: 25-35%
- Hardness: 270-320 HV
- High strength and toughness compared to standard austenitic stainless steels.
-
Corrosion Resistance:
- Excellent resistance to pitting, crevice, and stress corrosion cracking.
- Good resistance to acids, chlorides, and other corrosive environments.
- The duplex structure provides better corrosion resistance than 304/316 stainless steels.
-
Heat Resistance:
- Good resistance to scaling and oxidation at high temperatures up to 300°C.
- Can be used in applications involving elevated temperatures.
-
Cryogenic Properties:
- Excellent toughness and ductility at cryogenic temperatures.
- Can be used in very low temperature applications.
-
Weldability:
- Good weldability, but requires careful control of welding parameters.
- Potential issues include grain coarsening and precipitation of detrimental phases.
-
Fabrication:
- Can be readily formed, bent, and machined using standard metalworking techniques.
- However, it has higher work-hardening rates compared to austenitic stainless steels.
Application of the product
-
Oil and Gas Industry:
- Offshore oil and gas equipment (e.g., valves, pipelines, subsea equipment)
- Chemical processing equipment
- Seawater desalination plants
-
Marine and Shipbuilding:
- Ship hulls, decks, and superstructures
- Offshore platforms and drilling rigs
- Coastal and harbor infrastructure
-
Chemical and Petrochemical Processing:
- Reactors, vessels, and piping systems
- Storage tanks and equipment
- Heat exchangers and condensers
-
Pulp and Paper Industry:
- Digesters, washers, and other equipment
- Kraft mill recovery boilers and evaporators
-
Water and Wastewater Treatment:
- Clarifiers, filters, and other equipment
- Desalination plants and reverse osmosis systems
-
Power Generation:
- Components in nuclear power plants
- Flue gas desulfurization systems
- Cooling water systems
-
Food and Beverage Processing:
- Processing equipment, tanks, and piping
- Brewing and distilling equipment
-
Aerospace and Defense:
- Aircraft and spacecraft components
- Military vehicles and equipment
-
General Industrial Applications:
- Fasteners, springs, and other hardware
- Architectural and decorative applications
The key advantages of 2205 duplex stainless steel that drive these applications include:
- High strength and toughness
- Excellent corrosion resistance
- Good weldability and fabricability
- Resistance to stress corrosion cracking
- Cryogenic and high-temperature performance
FAQ
Q1: Are you trading company or manufacturer?
A: We are the manufacturer with 3 factories. Specializing in producing welded Wear plate, carbon steel profile, Carbon Products bollard for over 10 years.
Q2:What product information must I provide before making a purchase?
A:Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
A:Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
Q3:What are your payment terms?
A: 30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
A: 30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:Is it possible to send samples?
A: Of course, we offer free samples and express shipping to customers all over the world.
A: Of course, we offer free samples and express shipping to customers all over the world.
Q5:Do you offer a service for customized products?
A: Yes, we can produce according to your specifications and drawings.
A: Yes, we can produce according to your specifications and drawings.
Q6:Can you assist me in importing steel products for the first time?
A: Yes, we have shipping agent who will arrange the shipment with you.
Q7. What is your delivery time?
A: Within 7 working days after receiving your balance payment.
A: Yes, we have shipping agent who will arrange the shipment with you.
Q7. What is your delivery time?
A: Within 7 working days after receiving your balance payment.
