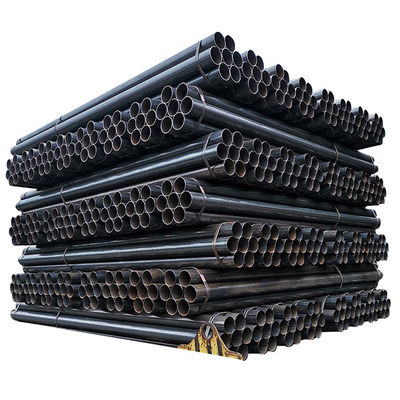

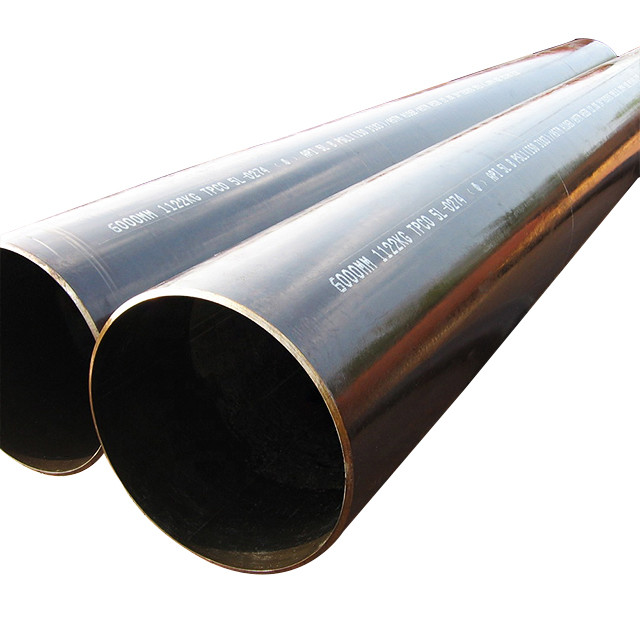

NO2201 custom ASTM a 106 API5l Grade B Petroleum Pipeline Seamless Steel Pipe

  • NO2201 custom ASTM a 106 API5l Grade B Petroleum Pipeline Seamless Steel Pipe
  • NO2201 custom ASTM a 106 API5l Grade B Petroleum Pipeline Seamless Steel Pipe
Place of Origin China
Brand Name Hongye
Certification ISO
Model Number NO2201
Minimum Order Quantity 25tons.We also can accept sample order.
Packaging Details Export Packing
Delivery Time Within 15-20 workdays after receiving deposit or L/C
Payment Terms T/T, L/C
Supply Ability 250,000 tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. NO2201 Material Carton
Width Customized Origin Wuxi
Color Silver Certification ROHS.ISO9001.ASTM, JIS. GB. ENASTMB
Grade 7000 Series Brand Hongye
Transport Package Export Packing Supply Ability 50000000ton/Year
Application Transportation Tools, Door & WindGlass Wall. Heat Sink, Decorations Technique Extruded
Customization Available |Customized Request
Leave a Message
Product Description

NO2201 custom ASTM a 106 API5l Grade B Petroleum Pipeline Seamless Steel Pipe



Company Profile



Hongye stands out with its unique capabilities! As a leading global metal distribution company, we provide tailored product solutions to meet our clients' needs, helping them gain a competitive edge.



Founded in 2009 and headquartered in Wuxi, China, Hongye has made significant achievements in the aerospace, defense, transportation, shipbuilding, semiconductor, energy, and construction sectors over the past five years.



We offer solutions in sheets, pipes, profiles, building materials, specialty steels, stainless steels, and non-ferrous metals. Additionally, our involvement in finance and port operations strengthens our position in the metal import and export market.



With our integrated “one-stop” services that include procurement, processing, retail, and logistics, Hongye has become an industry benchmark. We excel in delivering high-quality, cost-effective products, supported by robust supply chain management to meet customer needs continuously.

Internationally, Hongye has established a solid business network in Europe, Southeast Asia, and the Middle East. Our multilingual and culturally adept trade team ensures efficient and professional service for every transaction.



Since 2010, Hongye has made notable progress in sustainability, recognized by multiple institutions. By the end of 2012, we had invested 1.22 billion RMB (200 million USD) in China's metal distribution industry, becoming a significant local investor. We aim to expand our market share through collaboration and innovation.



Looking ahead, Hongye will continue to globalize, leveraging our experience and resources to grow our international market share and aspire to be a leader in the global metal distribution industry.



Our goal is to rank among the top 10 in comprehensive strength in China's metal distribution market.





Product Specification



  1. Material Grade:

    • ASTM A106 Grade B carbon steel
    • API 5L Grade B carbon steel

  2. Manufacturing Process:

    • Seamless

  3. Dimensional Specifications:

    • Outside Diameter (OD): 10.3 mm (0.405 in) to 610 mm (24 in)
    • Wall Thickness: 2.1 mm (0.083 in) to 25.4 mm (1 in)
    • Length: Standard and custom lengths available

  4. Tolerances:

    • Outer Diameter Tolerance: ±0.5% to ±1.5% of specified OD
    • Wall Thickness Tolerance: ±10% to ±12.5% of specified thickness
    • Straightness: ≤0.2% of total length
    • Circularity: ≤0.5% of OD

  5. Chemical Composition (wt.%):

    • Carbon (C): ≤0.30%
    • Manganese (Mn): ≤1.06%
    • Phosphorus (P): ≤0.035%
    • Sulfur (S): ≤0.035%
    • Silicon (Si): ≤0.10%

  6. Mechanical Properties:

    • Tensile Strength: 415-655 MPa (60,000-95,000 psi)
    • Yield Strength: ≥240 MPa (≥35,000 psi)
    • Elongation: ≥22%

  7. Heat Treatment:

    • Normalized or quenched and tempered

  8. Surface Condition:

    • Pickled and oiled, with a smooth surface finish

  9. Applicable Standards:

    • ASTM A106/A106M "Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service"
    • API 5L "Specification for Line Pipe"

  10. Key Features and Benefits:

    • High-strength carbon steel for reliable and safe transportation of petroleum products
    • Excellent weldability and formability
    • Corrosion resistance suitable for oil and gas pipeline applications
    • Tight tolerances for efficient installation and operation

  11. Applications:

    • Onshore and offshore oil and gas pipelines
    • Gathering lines and distribution networks
    • Refineries, petrochemical plants, and storage facilities
    • Water, steam, and other fluid transportation in industrial settings





Product Description



Understood, let me provide details on the custom ASTM A106 Grade B and API 5L Grade B seamless steel pipes for petroleum pipeline applications:

Product Name: NO2201 Custom ASTM A106 Grade B and API 5L Grade B Seamless Steel Pipe

Material Specification:

  • ASTM A106 Grade B carbon steel
  • API 5L Grade B carbon steel

Manufacturing Process:

  • Seamless

Dimensional Specifications:

  • Outside Diameter (OD): 10.3 mm to 610 mm (0.405 in to 24 in)
  • Wall Thickness: 2.1 mm to 25.4 mm (0.083 in to 1 in)
  • Length: Standard and custom lengths available

Tolerances:

  • Outer Diameter Tolerance: ±0.5% to ±1.5% of specified OD
  • Wall Thickness Tolerance: ±10% to ±12.5% of specified thickness
  • Straightness: ≤0.2% of total length
  • Circularity: ≤0.5% of OD

Chemical Composition (wt.%):

  • Carbon (C): ≤0.30%
  • Manganese (Mn): ≤1.06%
  • Phosphorus (P): ≤0.035%
  • Sulfur (S): ≤0.035%
  • Silicon (Si): ≤0.10%

Mechanical Properties:

  • Tensile Strength: 415-655 MPa (60,000-95,000 psi)
  • Yield Strength: ≥240 MPa (≥35,000 psi)
  • Elongation: ≥22%

Heat Treatment:

  • Normalized or quenched and tempered

Surface Condition:

  • Pickled and oiled, with a smooth surface finish

Applicable Standards:

  • ASTM A106/A106M "Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service"
  • API 5L "Specification for Line Pipe"

Key Features and Benefits:

  • High-strength carbon steel for reliable and safe transportation of petroleum products
  • Excellent weldability and formability
  • Corrosion resistance suitable for oil and gas pipeline applications
  • Tight tolerances for efficient installation and operation

Applications:

  • Onshore and offshore oil and gas pipelines
  • Gathering lines and distribution networks
  • Refineries, petrochemical plants, and storage facilities
  • Water, steam, and other fluid transportation in industrial settings

Product Characteristics


  1. Material Grade:

    • ASTM A106 Grade B carbon steel
    • API 5L Grade B carbon steel

  2. Manufacturing Process:

    • Seamless

  3. Dimensional Characteristics:

    • Wide range of outside diameters (OD) from 10.3 mm (0.405 in) to 610 mm (24 in)
    • Varied wall thickness options from 2.1 mm (0.083 in) to 25.4 mm (1 in)
    • Standard and custom lengths available

  4. Tolerance Specifications:

    • Tight outer diameter tolerance of ±0.5% to ±1.5% of specified OD
    • Strict wall thickness tolerance of ±10% to ±12.5% of specified thickness
    • Excellent straightness with ≤0.2% of total length
    • Tight circularity with ≤0.5% of OD

  5. Chemical Composition:

    • Low carbon content ≤0.30%
    • Manganese ≤1.06%
    • Phosphorus ≤0.035%
    • Sulfur ≤0.035%
    • Silicon ≤0.10%

  6. Mechanical Properties:

    • Tensile strength range of 415-655 MPa (60,000-95,000 psi)
    • Yield strength ≥240 MPa (≥35,000 psi)
    • Elongation ≥22%

  7. Heat Treatment:

    • Normalized or quenched and tempered

  8. Surface Condition:

    • Pickled and oiled, with a smooth surface finish

  9. Compliance Standards:

    • ASTM A106/A106M "Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service"
    • API 5L "Specification for Line Pipe"

  10. Key Features:

    • High-strength carbon steel for reliable and safe petroleum transportation
    • Excellent weldability and formability
    • Corrosion resistance suitable for oil and gas pipeline applications
    • Tight tolerances for efficient installation and operation

  11. Applications:

    • Onshore and offshore oil and gas pipelines
    • Gathering lines and distribution networks
    • Refineries, petrochemical plants, and storage facilities
    • Water, steam, and other fluid transportation in industrial settings





Application of the product



  1. Oil and Gas Pipelines:

    • Onshore and offshore oil and gas pipelines
    • Gathering lines for transporting crude oil and natural gas
    • Distribution networks for delivering refined petroleum products

  2. Refinery and Petrochemical Applications:

    • Pipelines and piping systems within refineries
    • Process piping in petrochemical plants and storage facilities
    • Fluid transportation in various process units

  3. Industrial Fluid Transportation:

    • Water, steam, and other fluid transport in power plants
    • Piping systems for industrial processes and utilities
    • HVAC systems and building services

  4. General Industrial Applications:

    • Structural and mechanical components in industrial equipment
    • Pressure vessels and storage tanks
    • Heat exchangers and boilers

The key benefits of using the NO2201 custom ASTM A106 Grade B and API 5L Grade B seamless steel pipes in these applications include:

  1. Reliability and Safety:

    • High-strength carbon steel construction ensures safe and reliable fluid transportation
    • Excellent mechanical properties for withstanding high pressures and temperatures

  2. Corrosion Resistance:

    • Suitable for use in harsh, corrosive environments encountered in the oil and gas industry
    • Protects against degradation and extends the service life of the piping system

  3. Weldability and Formability:

    • Seamless manufacturing process ensures superior weldability
    • Excellent formability for efficient installation and integration into piping systems

  4. Tight Dimensional Tolerances:

    • Precise control of outer diameter and wall thickness tolerances
    • Facilitates efficient and reliable installation and operation

  5. Versatility:

    • Wide range of size options to accommodate various application requirements
    • Custom lengths available to meet project-specific needs



FAQ

Q1: Are you trading company or manufacturer?

A: We are the manufacturer with 3 factories. Specializing in producing welded Wear plate, carbon steel profile, Carbon Products bollard for over 10 years.
Q2:What product information must I provide before making a purchase?
A:Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
Q3:What are your payment terms?
A: 30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:Is it possible to send samples?
A: Of course, we offer free samples and express shipping to customers all over the world.
Q5:Do you offer a service for customized products?
A: Yes, we can produce according to your specifications and drawings.
Q6:Can you assist me in importing steel products for the first time?
A: Yes, we have shipping agent who will arrange the shipment with you.
Q7. What is your delivery time?
A: Within 7 working days after receiving your balance payment.
